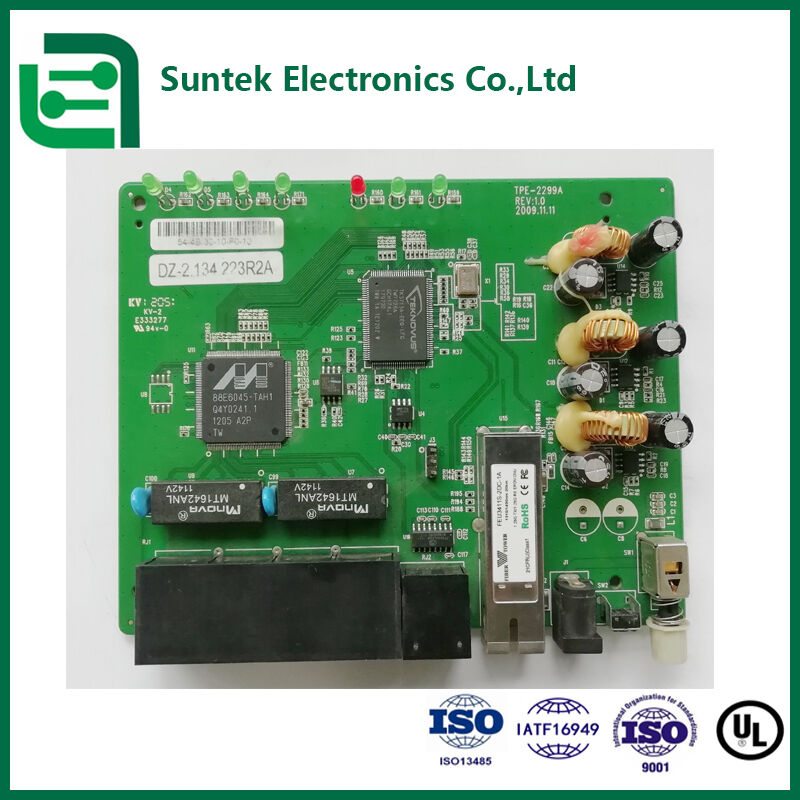

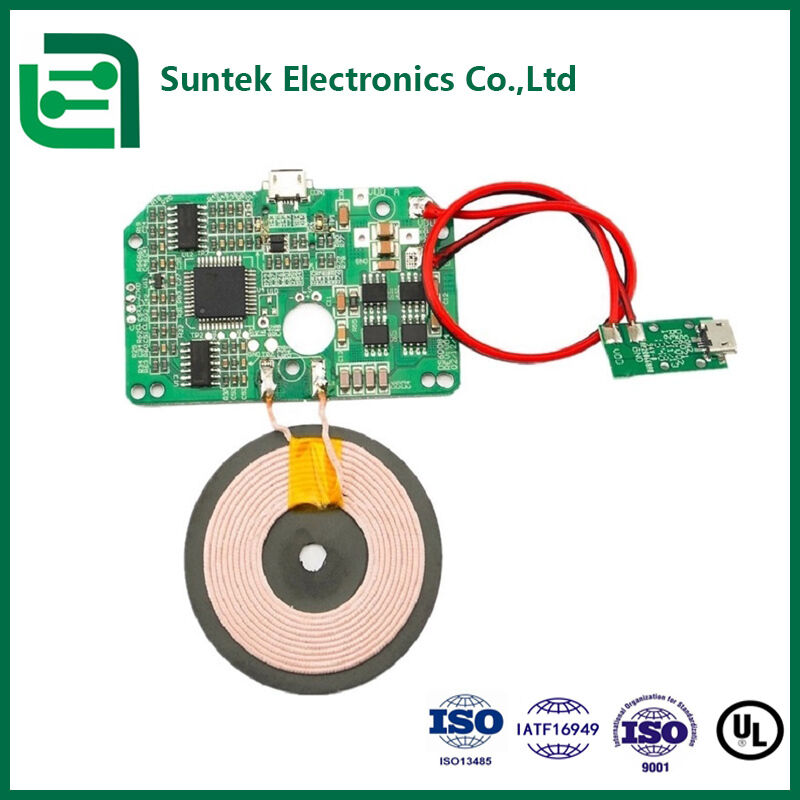

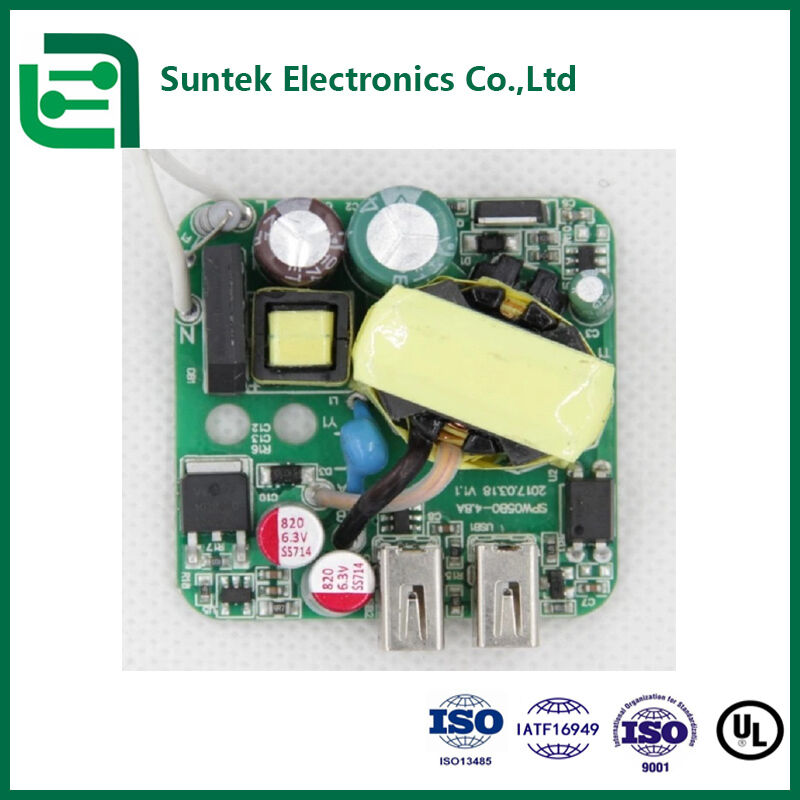

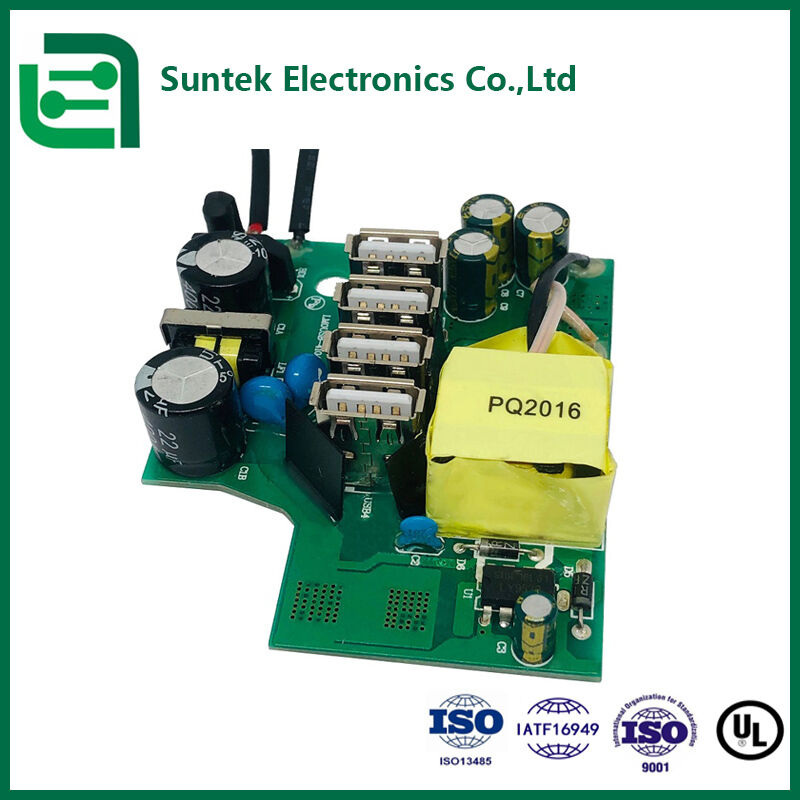

Name: Customized FR4 Turnkey PCB Assembly with Green Solder Mask and 100% Electrical Testing
Brand: Suntek Electronics Co., Ltd.
SKU: F1060-108
Price: 50.00 USD
Availability: InStock

বাড়ি > পণ্য > টার্নকি পিসিবি সমাবেশ >

Customized FR4 Turnkey PCB Assembly with Green Solder Mask and 100% Electrical Testing

Customized FR4 PCB Assembly

Green Solder Mask PCB Assembly

100% Electrical Testing Turnkey PCB Assembly

উৎপত্তি স্থল:

চীন বা কম্বোডিয়া

পরিচিতিমুলক নাম:

Suntek/BLSuntek

সাক্ষ্যদান:

ISO9001 ISO13485 IATF16949 UL

মডেল নম্বার:

F1060-108

যোগাযোগ করুন

একটি উদ্ধৃতি অনুরোধ করুন

পণ্যের বিবরণ

উপাদান::

এফআর 4 (টিজি 130-টিজি 180)/রজার্স/অ্যালুমিনিয়াম

সোল্ডার মাস্ক::

সবুজ, নীল, কালো, লাল, সাদা, ম্যাট রঙ

তামা::

0.5oz -10oz

স্তর::

1L-32L

এসএমটি, থ্ট::

হ্যাঁ

বেধ::

1.0 মিমি/1.6 মিমি/2 মিমি/4 মিমি

RoHS::

সীসা বা সীসা বিনামূল্যে

ওয়ারেন্টি::

1 বছর

হোল মিনিট।::

0.1 মিমি

পেমেন্ট ও শিপিংয়ের শর্তাবলী

ন্যূনতম চাহিদার পরিমাণ

কোন সীমা নেই

মূল্য

Customized products

প্যাকেজিং বিবরণ

ইএসডি ব্যাগ এবং কার্টন দ্বারা

ডেলিভারি সময়

সমস্ত উপাদান কিটডের পরে 5-7 দিন

পরিশোধের শর্ত

টি/টি

সম্পর্কিত পণ্য

ভিডিও

Customized FR4 Turnkey PCB Assembly with Green Solder Mask and 100% Electrical Testing

সেরা দাম পান

ভিডিও

আইপিসি ক্লাস II/III স্ট্যান্ডার্ড এবং 600mm*1200mm সর্বোচ্চ আকারের সাথে ENIG 2U টার্নকি পিসিবি সমাবেশ

সেরা দাম পান

ভিডিও

600 মিমি * 1200 মিমি সর্বাধিক আকার ENIG 2U পৃষ্ঠতল ROHS অনুগত টার্নকি পিসিবি সমাবেশ পিসিবিএ

সেরা দাম পান

ভিডিও

আইপিসি ক্লাস II/III স্ট্যান্ডার্ড এবং 600mm*1200mm সর্বোচ্চ আকারের সাথে ENIG 2U টার্নকি পিসিবি সমাবেশ

সেরা দাম পান

যোগাযোগ করুন

এখনই যোগাযোগ করুন

পণ্যের বিবরণ

Customized FR4 SMT PCB Assembly

Professional PCB assembly services featuring green solder mask and comprehensive 100% electrical testing for quality assurance.

About Suntek Group

Suntek is a leading contract supplier in the EMS field, providing comprehensive one-stop solutions for PCB/FPC assembly, cable assembly, and box-build assembly.

Our manufacturing facilities include:

Suntek Electronics Co., Ltd - Hunan Province, China
BLSuntek Electronics Co., Ltd - Kandal Province, Cambodia

Certified with ISO9001:2015, ISO13485:2016, IATF 16949:2016 and UL E476377, we deliver qualified products with competitive pricing to clients worldwide.

Our Comprehensive Services

We transform your requirements into finished products:

Gerber file and BOM conversion into real products
Reverse-engineering services from physical samples
Joint-design services to bring your ideas to life

Technical Specifications

Specification	Details
Material Type	FR-1, FR-4, CEM-1, aluminum clad
Material Thickness (mm)	0.4, 0.6, 0.8, 1.0, 1.2, 1.6, 2.0
Layer Count	1 to 8 Layers
Max. Board Size	23.00" x 35.00" (580mm*900mm)
IPC Class	Class II, Class III, Class 1
Annular Ring	5 mil/side or Greater (Min. Design)
Finish Plating	HASL, Lead Free HASL, ENIG, OSP, immersion silver, immersion tin, immersion nickel, hard gold
Copper Weight	0.5OZ-2OZ
Trace/Space Width	3 Mils or greater
Drill Clearance	0.1mm (laser drilling)
Plated Slots	0.036 or greater
Smallest Hole (finished)	0.1mm or greater
Gold Fingers	1 to 4 Edge (30 to 50 Micron Gold)
SMD Pitch	0.080" - 0.020" - 0.010"
Solder Mask Type	LPI Glossy, LPI-Matte, SR1000
Solder Mask Color	Green, red, blue, black, white, yellow
Legend Color	White, yellow, black, red, blue
CNC Route Point	Any
Minimum Route Width	0.031"
Scoring	Straight lines, jump scoring, panel edge to edge, CNC
Body Gold	HARD, IMMERSION (up to 50 MICRON GOLD)
Data File Format	Gerber 274x with embedder aperture
FAB. Drawing Format	DXF, HPGL, DWG, PDF, Gerber
E.T Testing	Flying probe, single sided, 1up plate, clamp shell, net list
Counter Sink/Counter Bore	Available up to 0.250 Diameter
Control Impedance	Yes
Blind Vias/Buried Vias	Yes
Peelable Mask	Yes
Carbon	Yes

Complete Manufacturing Solutions

PCB/FPC fabrication
Components sourcing
PCB/FPC assembly
Custom cable/harness assembly
Box build assembly

Assembly & Testing Services

SMT, THT, BGA, 0201 Chips assembly
AOI, X-Ray, ICT, FT, Burn-in testing
Conformal coating or gluing
High-mix, small to medium volume production
ISO9001, ISO13485, TS16949 and UL certified

EMS Quality Advantages

Strict product liability following IPC-A-610 standards
Fluent English-speaking teams
PDCA management tool implementation
100% electrical testing and visual inspection
Comprehensive AOI inspection including X-ray, 3D microscope and ICT
High-voltage testing and impedance control testing
ISO9001, ISO13485, IATF16949 and UL certified
No minimum order quantity requirements
Specialized in low to medium volume production
Quick and reliable on-time delivery

Why Choose Suntek?

As an experienced and reliable manufacturer, Suntek provides comprehensive one-stop services including PCB manufacturing and assembly for global customers with diverse project requirements.

Instant Quote Service

Receive our detailed quote within 24-48 hours with positive feedback on all project specifications.

Expert Technical Support

Our professional engineers provide comprehensive technical support from PCB design to turnkey assembly.

Advanced Automation

State-of-the-art automatic equipment ensures high efficiency, cost-effectiveness, and consistent quality.

Dedicated After-Sales Service

Continuous order tracking with instant updates throughout the production process from our customer service team.

Customer Support & Services

We maintain complete cost transparency with detailed BOM cost breakdown sharing and source components globally.

Proactive Communication

Customer service procedures
RMA procedures
8D reports for issue resolution
PDCA (Plan-Do-Check-Action) methodology

Responsive Support

24-hour response to complaints and queries
Weekly progress reports
Dedicated customer support team
Customer satisfaction surveys

Comprehensive After-Sales

1-year guarantee period for all products
Free-of-charge repair services
Rapid replacement of defective components

PCBA Assembly Process Flow

Frequently Asked Questions

Q1: What files do you use in PCB fabrication?

A1: Gerber files and PCB Auto CAD formats.

Q2: How do you ensure product quality?

A2: All products undergo 100% electrical testing. PCB assemblies include comprehensive AOI, ICT, functional testing, and 100% X-ray inspection for BGA components.

Q3: Can we visit your facilities?

A3: Absolutely. We welcome visits to our Suntek facility located in Xingsha Industrial Park, Changsha, Hunan province, China.

Q4: What are your typical lead times?

A4: Samples: 3-5 working days; Batch production: 7-10 working days (based on files and quantity); PCB assembly: 15-20 working days.

Q5: How do you protect customer information?

A5: We strictly maintain business confidentiality and protect customer designs. NDAs can be signed at any time.

Q6: How do we start working with you?

A6: Email your PCB layout file and BOM list. We provide confirmation within 12 hours and detailed quotes within 3-5 days.

Our advanced manufacturing equipment, professional engineering teams, comprehensive quality control, and efficient management ensure high-quality products and reliable on-time delivery. Our PCB assemblies are widely used in industrial control, automotive, telecommunications, medical equipment, consumer electronics, and more.
